Quilts

This session is about recognising the rotational design elements in conventional patchwork patterns.

1.

Show (Quilts PowerPoint 1) (or an actual quilt if possible) and make links with students' prior knowledge. Consider any possible community links here - a member of your local community might be able to bring in quilts or a tapa cloth to share with your class.

• What do people use quilts for?
• Who makes quilts? Why do you think they make them?
• How do you think a quilt is made?
• What are the different components that you can see?

2.

Discuss and record the students’ ideas on the class chart.
Acknowledge all ideas and explain that the class will be making their own patchwork quilt(s).

3.

Read: A Cloak for the Dreamer by Aileen Friedman.

4.

Write tessellation on the class chart. Search the term online to find a definition and some examples. See the Level 4 Unit, Tessellation, Transformation and Art and the level 3 unit, Keeping in Shape for further information around tessellations. For example:

• a tessellation is a pattern or arrangement of shapes that fit together without any gaps or overlaps.

5.

Discuss the definition of tessellation that you have provided, and encourage students to reflect on the examples of tessellations they have seen in (Quilts PowerPoint 1) and A Cloak for the Dreamer. Highlight that tessellations are flat arrangements of shapes with no gaps or overlaps. If possible, show some further example of tessellations that are relevant to your students (e.g. from local buildings, art, in nature).

6.

Have students look up the history of patchwork quilts. Originally patchwork quilts were an economical and practical way to use left-over fabric pieces. However, some designs were associated with important eras in history, such as settlement and slavery in the USA. Patchwork quilts are both cultural art forms and functional items. This combination of utility and beauty is the reason that they continue to be popular. You might ask a local community member to come and talk to your class about their quilting knowledge and experiences.

7.

Display an actual quilt if possible, or one of the slides in Quilts PowerPoint 1.

• What do you notice about the shapes in this quilt?

Look for students to name the shapes, such as right angles triangles in Slide One or trapezia in Slide Two.

8.

Discuss the properties of the shape, such as parallel sides, angles, and symmetry. Focus on how the shapes fit together using the language of geometry. For example, squares fit together by shifting, known mathematically as translation. Some designs involve a reflection or “flip” of the parent shape to produce the neighbouring shape. Rotation about the mid-point of a side is far less common in quilts patterns.

9.

Write the words translation, reflection and rotation on the class chart and display an example of each transformation. You could use shape tiles (or a digital model - search online for interactive tessellation tool) to demonstrate this. As a class, identify the translation, reflection and rotation evident in the patchwork panels (Quilts powerpoint 1) and describe how the transformations are identified. Identify any examples of glide reflection (a combination of vertical reflection and translation), and glide rotation (a combination of rotation and translation). You might then ask students to create or research examples of these tessellations, and collate these in a class display (e.g. on a slide deck).

10.

Distribute a copy of (Quilts patch designs CM) to each student and make available coloured pencils or felt pens.
Have students write a description of the transformation (using a diagram and words) beside each of the designs, explaining the transformation process used to create the design. If necessary, complete the first example as a class, and then have students work independently or in pairs to describe the remaining transformations. To further support students, have them use shape tiles to model each translation. This could be done in a small group whilst the rest of the class works in pairs/independently. In the 6th empty panel have students create their own design and describe the transformation.

11.

Gather the class together and have students share and discuss their descriptions with a partner and the class, identifying their favourite design. Collect students' copies of (Quilts patch designs CM) for use in Session Two.

This session is about selecting a design, and applying the practical skills and process required to create a patchwork square.

1.

Discuss a suitable size for a patchwork square. Have some paper squares available, such as 5 cm x 5 cm, 10 cm x 10 cm, 15 cm x 15 cm, 20 cm x 20 cm, 25 cm x 25 cm and 30 cm x 30 cm.

2.

Lead a discussion around the size of each square, using the following prompts:

• Estimate the side length of this square. How did you estimate accurately?  Draw on students' use of personal benchmarks (e.g.. it looks about the size of my ruler, and my ruler is 30cm long).
• Can you think of something else that might be the same size as this square?
• Check the side lengths by measuring with a rule. Check your students' use of measuring tools and model accurate measurement, if necessary.
• Was your estimate accurate or close?
• What is a good size for a patchwork square?

3.

The size of a suitable square depends on the size of the target area. You should decide how large each completed quilt (or quilt design) will be, and therefore how many quilting blocks need to be created. This could be decided upon as a class, and could provide a valuable context for applying multiplication strategies to whole numbers

• Let’s decide on how big our patchwork square should be. Imagine that the quilt will be the size of this sheet of paper (cartridge or brown butchers’ paper).
• What sized square should we use? Why?
• Each row of your quilt will have 3 squares, and each column will have 3 squares. How many squares do you need altogether? If each square is 10cm x 10cm, what will the area/length be of each row/column/the whole quilt?)

4.

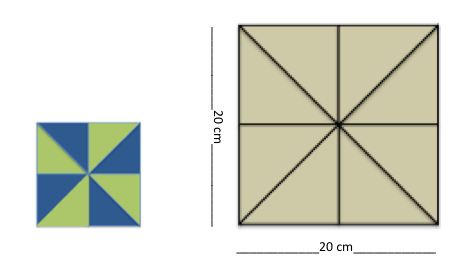

Explore the layouts of squares of different sizes. A square of about 20 cm x 20 cm is commonly used in quilt design and is a useful size for photocopying. Using smaller squares will also work.

5.

Organise students into pairs and ask them to identify their favourite design from (Quilts patch designs CM). Give each pair an A4 sheet of photocopying paper, a pencil, ruler, and scissors. Have each pair of students enlarge their preferred design to make a practical template pattern that they will use to complete their full quilt. You may need to model this process first, drawing attention to the proportions and elements of the design. Emphasise and model precision in construction and measuring.

• Which lines are important in this design?
• Give me specific instructions about where to draw the lines. Words like centre, midpoint, vertical, horizontal, and diagonal might be used.
• How can I be sure that my construction is accurate? Look for students to use words like corner, vertical, straight etc. to justify their work.

6.

Ensure that a teacher example template is created for use in the next activity.

7.

Let pairs of students draw the square template and the construction lines. Calculators will be useful for the next phase if the calculation of area is required.

• What shapes make up your square?
• What colour is each shape?
• How will you create the shapes without wasting paper?

As an extension, ask students to calculate the area of each shape in square centimetres (cm²). This will involve a discussion about finding the areas of rectangles, triangles, and possibly other polygons.
Discuss and model these calculations as required.

8.

Ask students to cut out shapes of coloured paper to complete a single square. Colouring could also be used but cutting out requires students to measure lengths and angles correctly. Students should glue the pieces in place.

9.

Finish the session by looking at the structure of the squares. Use geometric terms to names and describe the shapes, such as symmetrical, right-angle, parallel, perpendicular (at right angles to), and the language of transformation, such as reflected, rotated, and translated. Draw on your students' knowledge and guide discussion to utilise these terms. You could also use this as an opportunity for whole-class teaching around a specific concept (e.g. right and acute angles).

10.

Collect all the named squares for photocopying or printing before the next lesson.

1.

In these session students use photocopies of the square to complete their quilting pattern in pairs. They explore how squares are added to the pattern using the transformations of translation, reflection, and rotation. Ensure that at least 9 copies of the square produced by each pair are made in colour. Similarly, ensure that you have copied and cut out plenty of squares of your design from Session Two.

2.

Ask students to remind you what tessellation means, and how shapes can be tessellated (i.e., a pattern of shapes on a plane - a flat surface - with no gaps or overlaps. The shapes can be slid, rotated, or reflected).

3.

Using a flat surface (e.g., a whiteboard), take the original square you used to model the design process in Session Two and attach it to the board. Draw on the ideas generated in discussion and model the ways in which a square might be moved to create a tessellation. Alternatively use PowerPoint Two as base to copy, translate, rotate, and reflect the square.

• I have many squares just like this one. Now I want to complete my quilt.
• How should I arrange the squares?

Look for students to suggest ways that have been discussed earlier (i.e., translation, reflection, rotation, glide reflection, glide rotation).

4.

Model each technique as it is suggested by physically moving a new square, starting with it on top of the first square.

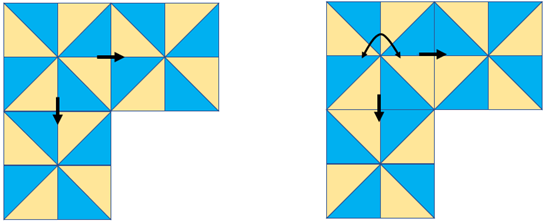

Translation                                                                                                                   Vertical reflection and translation

Half turn rotation and translation.

5.

Discuss:

• Are these patterns the same or different? How do you know? What do you notice?

Look for students to recognise that the patterns are different, and for them to demonstrate how they are different.

6.

Let students work in pairs to complete their paper quilts. Provide students with cut-to-size pieces of cartridge or butcher's paper (you could have students apply their measurement skills by cutting these to size). This will act as the 'backing' to their quilt. First they need to attach the original square, made with coloured paper, in the top left. Emphasise the need for no gaps or overlaps. Second, they need to decide on the transformation they will use to locate and position squares. It is important that students apply that transformation consistently and do not mix transformations.

7.

As students work roam the room and provide support. Look for students to:

• Apply a consistent transformation.
• Create accurate and tidy tessellations.
• Describe the transformation using mathematical language (e.g. we have rotated our squares).

8.

After a suitable time gather the class to share quilt designs. Challenge students to work out what transformation has been used by each pair as they share their quilt pattern. Take digital photographs of the designs and turn them into a PowerPoint slide show for tomorrow’s lesson.

1.

This session is about describing the design of a quilt that includes identifying the element (initial square) and the transformation that was used.

2.

Show three different designs created by pairs of students. Challenge the rest of the class to describe the geometric element (e.g., right-angle triangle) used to create the pattern and the transformation used. Discuss appropriate mathematical language.

3.

Use Slides Two and Three of Quilts PowerPoint 2 to provide a design challenge for students. They may prefer to use letters to assign colours rather than colour in the patterns. For each element the challenge is to apply the stated transformation. Animating the slide can be used to check the designs.

4.

If students are interested, you might investigate the 7 possible frieze patterns. The work on quilts involved three of the types. Students might create another element and apply a different transformation to create a different quilt pattern.

5.

If time permits, have students create a presentation that describes the mathematical understandings they have developed throughout the unit (e.g., what transformations and geometric elements they used, challenges, new learning, links to context). Utilise a range of tools and representations that will enable students to express their learning in an engaging and appropriate manner (e.g., on paper, as a slideshow, speech, or video). Display the quilt(s) alongside these presentations.
